Changing the Motor

PLEASE NOTE: If your are in anyway unsure of any of the steps listed below. Please consult a qualified electrician and always remove the plug from the socket before commencing work.

1. Start by detaching your Dyson's cyclone/bin assembly.

The image “http://sparesaver.rippleffect.com/uploads/images//library/DC08_ta_images/tn_dc08_r_cyc1_c.jpg” cannot be displayed, because it contains errors.



2. Then unlatch the pre motor filter cover.

The image “http://sparesaver.rippleffect.com/uploads/images//library/DC08_ta_images/tn_dc08_r_prefilcov1_c.jpg” cannot be displayed, because it contains errors.



3. Underneath the pre motor filter cover you will find the blue/yellow pre motor filter. Which can now be removed.

The image “http://sparesaver.rippleffect.com/uploads/images//library/DC08_ta_images/tn_dc08_r_prefilter_c.jpg” cannot be displayed, because it contains errors.



4. Next remove the wheels by placing a large flat screwdriver into the gap between the DC08's body and the wheel. Ensure that the screwdriver is placed as close to the centre as possible before prising the wheel off.

The image “http://sparesaver.rippleffect.com/uploads/images//library/DC08_ta_images/tn_dc08_r_wheel2_c.jpg” cannot be displayed, because it contains errors.



5. Using a Torx T15 screwdriver. Remove the six retaining screws holding the upper motor cover in place.

The image “http://sparesaver.rippleffect.com/uploads/images//library/DC08_ta_images/tn_dc08_r_uppmotcov3_arc.jpg” cannot be displayed, because it contains errors.



6. Then split the upper motor cover from the lower motor cover. Take a moment to examine the layout of the motor and cable inside the casing.

The image “http://sparesaver.rippleffect.com/uploads/images//library/DC08_ta_images/tn_dc08_r_motcable1_c.jpg” cannot be displayed, because it contains errors.

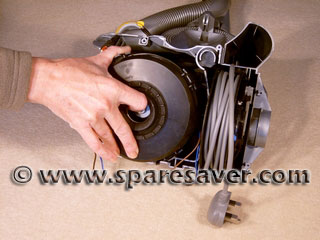

7. Disconnect the brown (Live) wire and the the blue (Neutral) wires and then carefully withdraw the motor from the casing.

The image “http://sparesaver.rippleffect.com/uploads/images//library/DC08_ta_images/tn_dc08_r_motor2_c.jpg” cannot be displayed, because it contains errors.

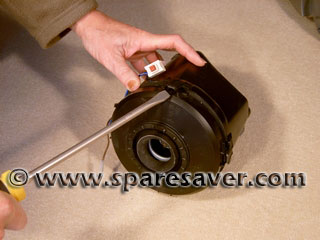

8. Using a large flat screwdriver gently prise back the locating tabs to remove the motor bucket top from the motor bucket.

The image “http://sparesaver.rippleffect.com/uploads/images//library/DC08_ta_images/tn_dc08_r_motbucktop1_c.jpg” cannot be displayed, because it contains errors.

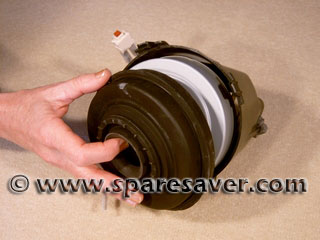

9. Once the motor bucket top is removed the motor seal can then be withdrawn.

The image “http://sparesaver.rippleffect.com/uploads/images//library/DC08_ta_images/tn_dc08_r_motseal_c.jpg” cannot be displayed, because it contains errors.

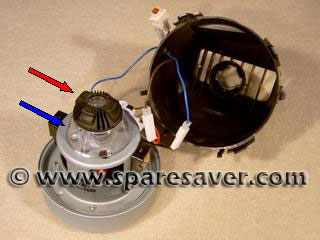

10. The motor will then easily come away from the motor bucket. Next, disconnect the motor wires red to brown (Live) and black to blue (Neutral). Then remove the motor plate (Blue arrow) and motor bearing (Red arrow) and fit them to the new motor.

The image “http://sparesaver.rippleffect.com/uploads/images//library/DC08_ta_images/tn_dc08_r_motwires_arc.jpg” cannot be displayed, because it contains errors.

Reassembly is a simple matter of reversing the steps listed above.
