Changing the Hose

PLEASE NOTE: Always remove the plug from the socket before commencing work.

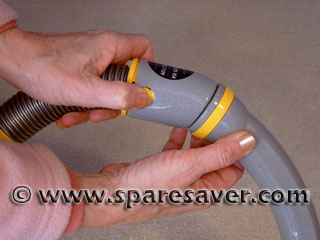

1. Firstly detach the hose from the bent wand by depressing the two brightly coloured buttons. Located either side of the cuff on the bent wand.

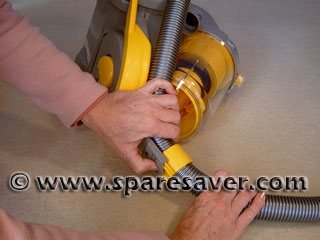

2. Detach the hose from the main body of your DC05 by withdrawing the hose from the inlet.

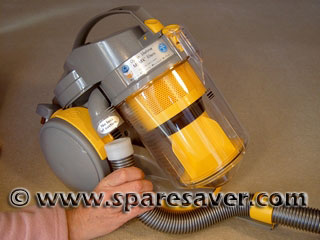

3. Then release the hose support by laying the Dyson onto it's side and depressing the button on the bottom of the hose clamp.



Reassembly is a simple matter of reversing the steps listed above.
