Replacing the Brush Roll (Models WITH Brush Control)

PLEASE NOTE: Always remove the plug from the socket before commencing work.

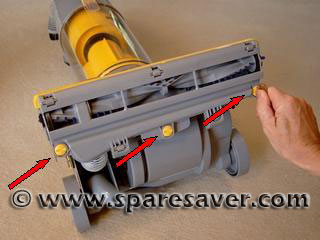

1. Start by laying your Dyson onto it's back and, using a two pence piece, turn each of the three soleplate fasteners a quarter of a turn in an anti-clockwise direction.

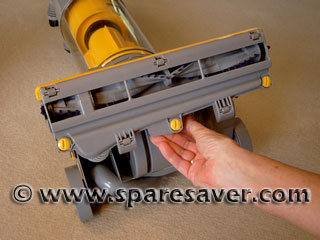

2. Remove the soleplate by prising it away from the cleaner head, underneath the centre soleplate fastener.



3. Place the DC04 Brush Roll Removal Tool (Designed by and sold exclusively through www.sparesaver.com) over the brush roll at the belt end.



4. Using the belt hook pull the belt onto the bottom holding pin of the DC04 Brush Roll Removal Tool. Then hook the belt onto the top pin.



5. Carefully pull the brush roll out of the brush holder. (You may find it easier to remove the brush roll's black end cap before pulling it through the belt opening.)



Replacing the brush roll is a simple reversal of the steps listed above.
