Replacing the Switch

PLEASE NOTE: If your are in anyway unsure of any of the steps listed below. Please consult a qualified electrician and always remove the plug from the socket before commencing work.

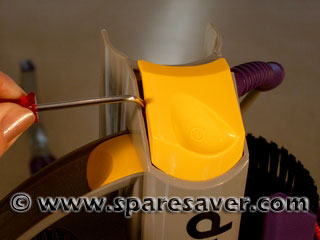

1. Start by unwinding the cable and then remove the wand assembly from the rear of the Dyson. Then, using the specially bent small screwdriver. gently push the screwdriver into the gap between the switch cover and the main body. To gently push the locating lug on the switch cover out of its socket. Place a thin screwdriver into the gap that you have created and, using the same method, release the locating lug on the other side of the switch cover.

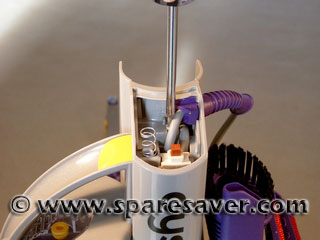

2. Using a Torx T15 screwdriver remove the screw holding the switch plate in place.

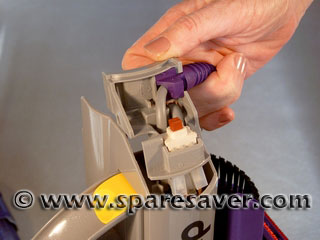

3. Holding the cable grommet firmly, pull upwards to release the switch plate from the main body.

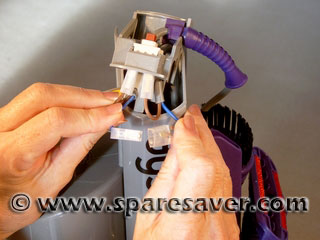

4. Disconnect the two blue (neutral) wires.

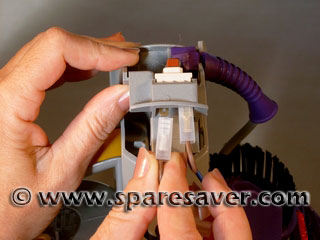

5. Then disconnect the two brown (live) wires from the switch.

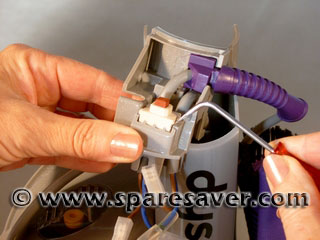

6. Using a small flat screwdriver prise the switch from it's holder.



Reassembly is a simple matter of reversing the steps listed above.
