Replacing the Post Motor Filter

PLEASE NOTE: Always remove the plug from the socket before commencing work.

1. Start by pushing the locating ring above the filter housing forward to release the pre motor filter housing



2. Remove the pre motor filter housing by sliding it out from the main body.

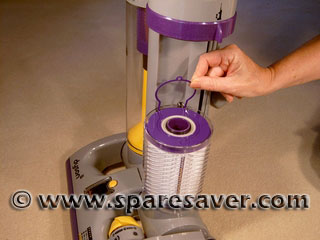

3. Carefully release the thin plastic handle on top of the post motor HEPA filter.

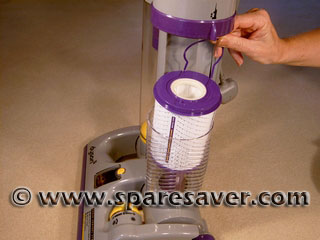

4. Use the handle to pull the post motor filter out of it's housing.



Reassembly is a simple matter of reversing the steps listed above.
