Replacing the Cable

PLEASE NOTE: If your are in anyway unsure of any of the steps listed below. Please consult a qualified electrician and always remove the plug from the socket before commencing work.

1. Remove the cyclone and bin assembly by grasping the bottom of the bin and rotating the cyclone assembly upwards. The cyclone will become unattached from the cleaner's main body.



2. Using a torx T15 screwdriver, remove the screw holding the switch cover plate.



3. Then remove the switch cover.

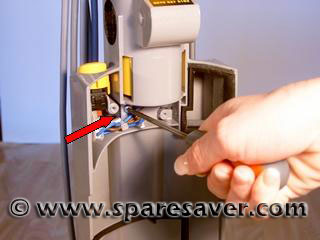

4. Using a Torx T15 screwdriver remove the cable clamp.

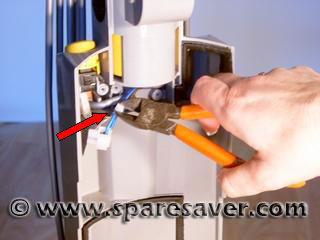

5. Using sidecutters remove the cable tie, without damaging the wires or insulation.

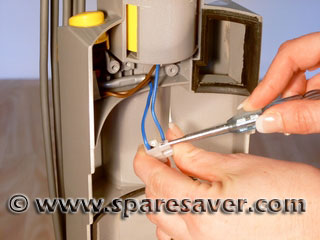

6. Remove the blue (neutral) wire from the terminal connector.



7. Gently prise the switch from it's holder.



8. Remove the brown (live) wire from the switch.

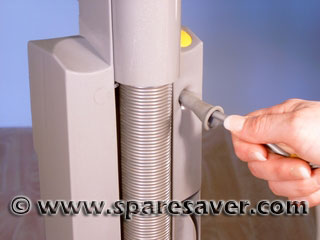

9. Gently pull the old cable from the rear of the Dyson.

Replacing the cable is a simple reversal of the steps listed above.
